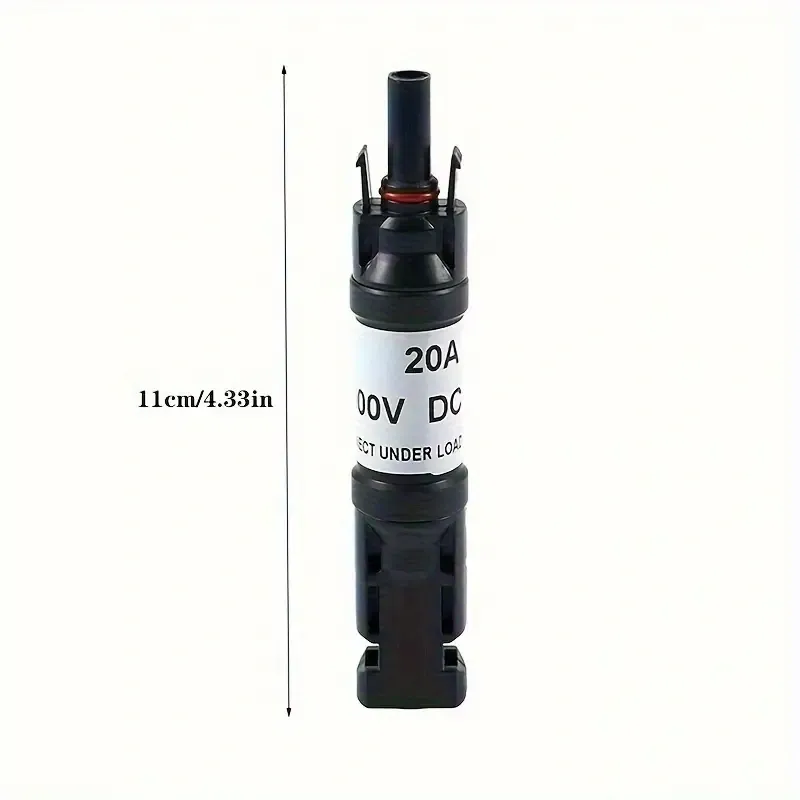

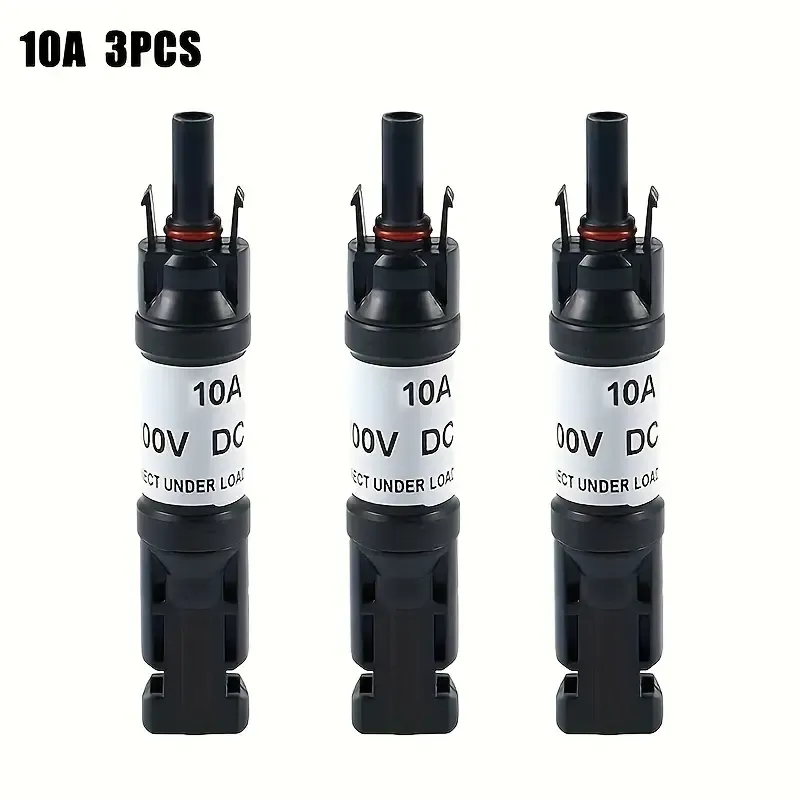

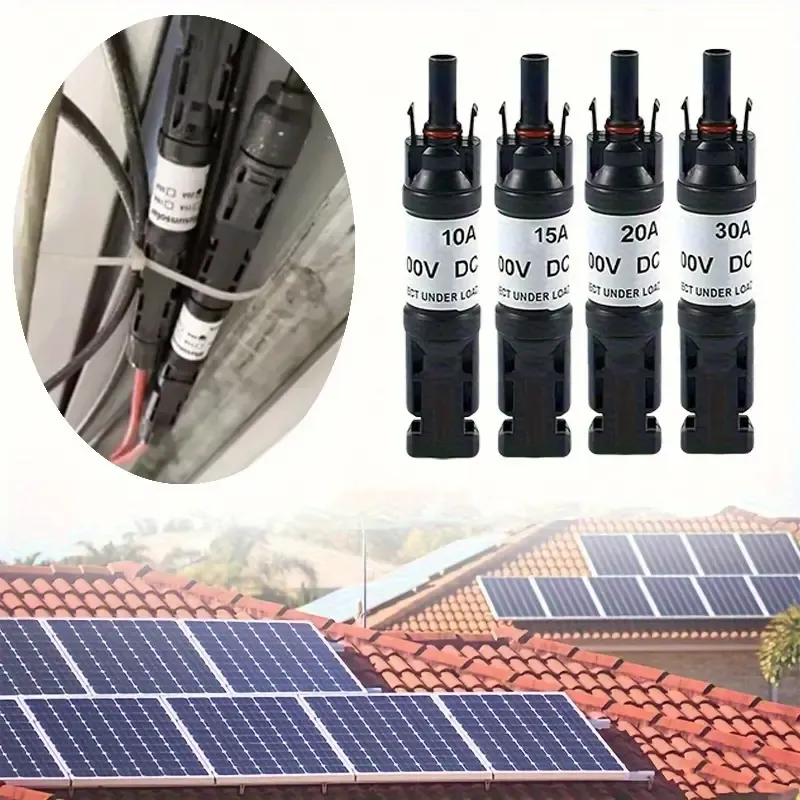

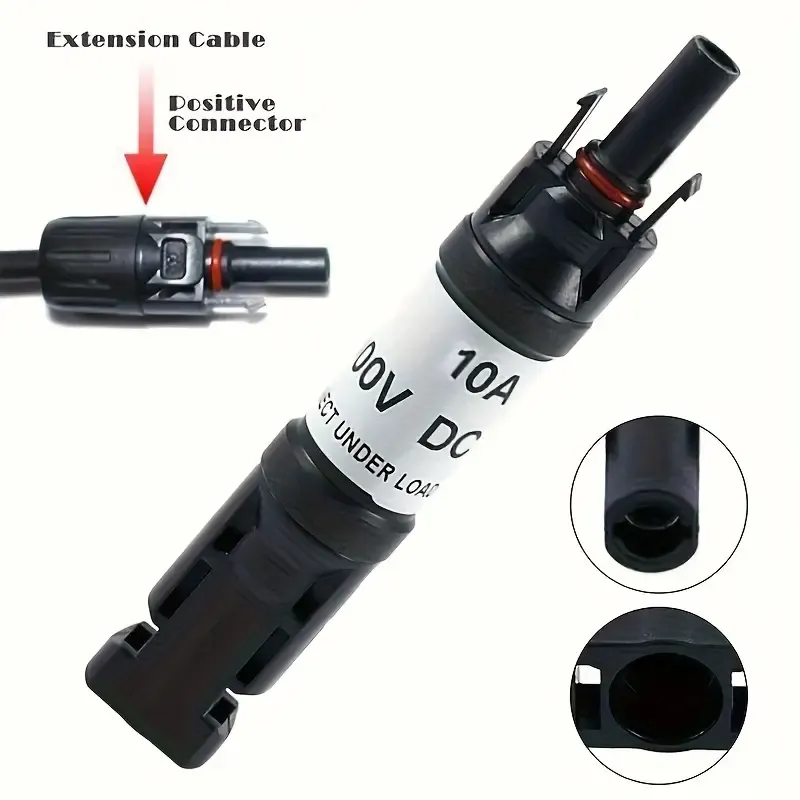

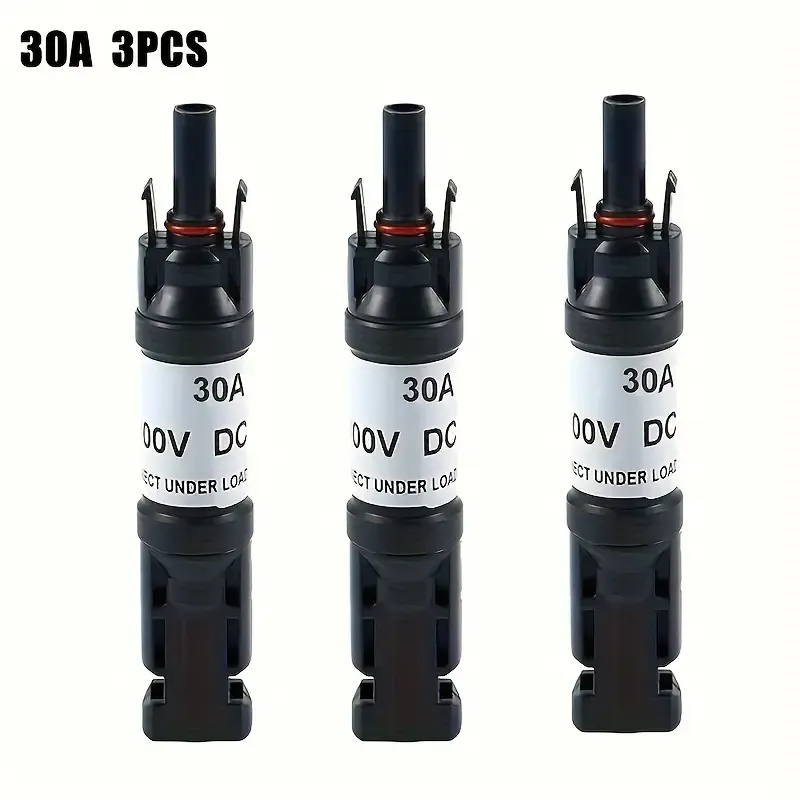

In-line Fuse Connector 30A 20A 15A 10A Solar PV Connector Fuse protection 1000 VDC Male to Fem PV Photovoltaic WaterproofÂ
Features
100% Brand new and high quality;
Compatible with solar Connectors
Designed for wide range of DC Applications – Simple Plug & Play
All Weather Waterproof
10A 15A 20A 30A Solar PV In-Line Fuse Holder Waterproof
Specifications
Contacts material: copper
Insulator Material: PC
Shape: bar
Maximum working voltage:DC1000V
Current:10A/15A/20A/30A
Flame class: UL94-V0
Pollution degree:2
Contact resistance: ≤ 5mm Ω
Shell Protection degree:IP65
Specification of Connecting Line: 1.5~6mm2
Ambient temperature range ： -40 � +85 ℃
Safety Level:class ‖
Insertion force: ≤ 50N
Withdrawal force: ≥ 50N
Fuse Current ： 10A/15A/20A/30A
Dia of Pin:4.0
Solar PV In-Line Fuse Connector 1000 VDC Male to Fem PV Solar Fuse Holder
15A/20A/30A 3 for your choice
Fuse Current :30A /20AÂ /15A/10AÂ for choice. (only the fuse,no connector )
Connector with Fuse : 30A /20A /15A/10A for choice. ( Fuse with the Connctor)

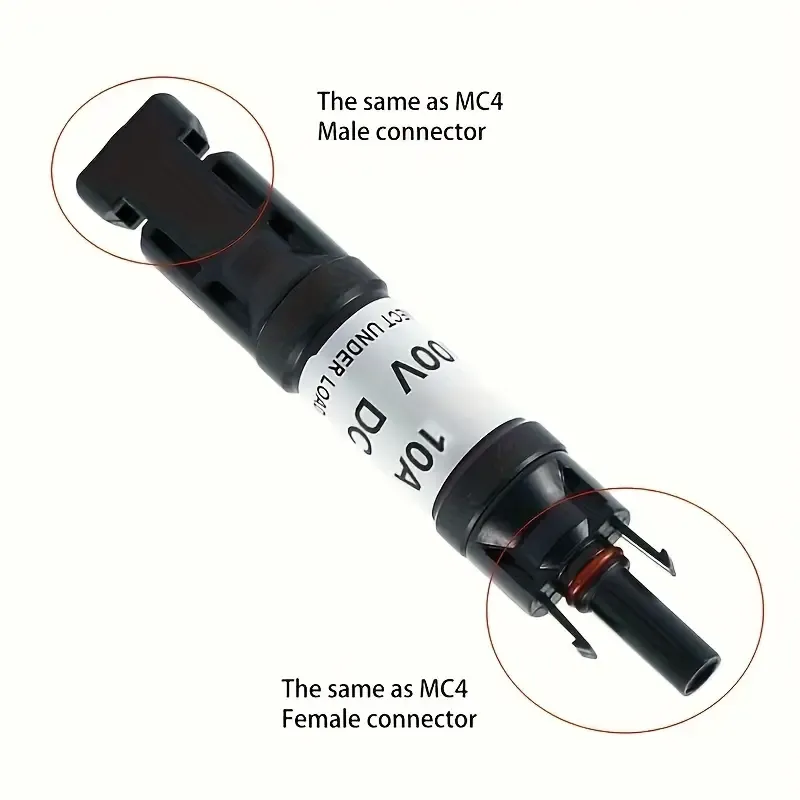

New In-line Fuse Connector 1000 VDC Male to Fem PV Solar Fuse Holder
10A/15A/20A/30A for your choice
